RAJ158

RAJ

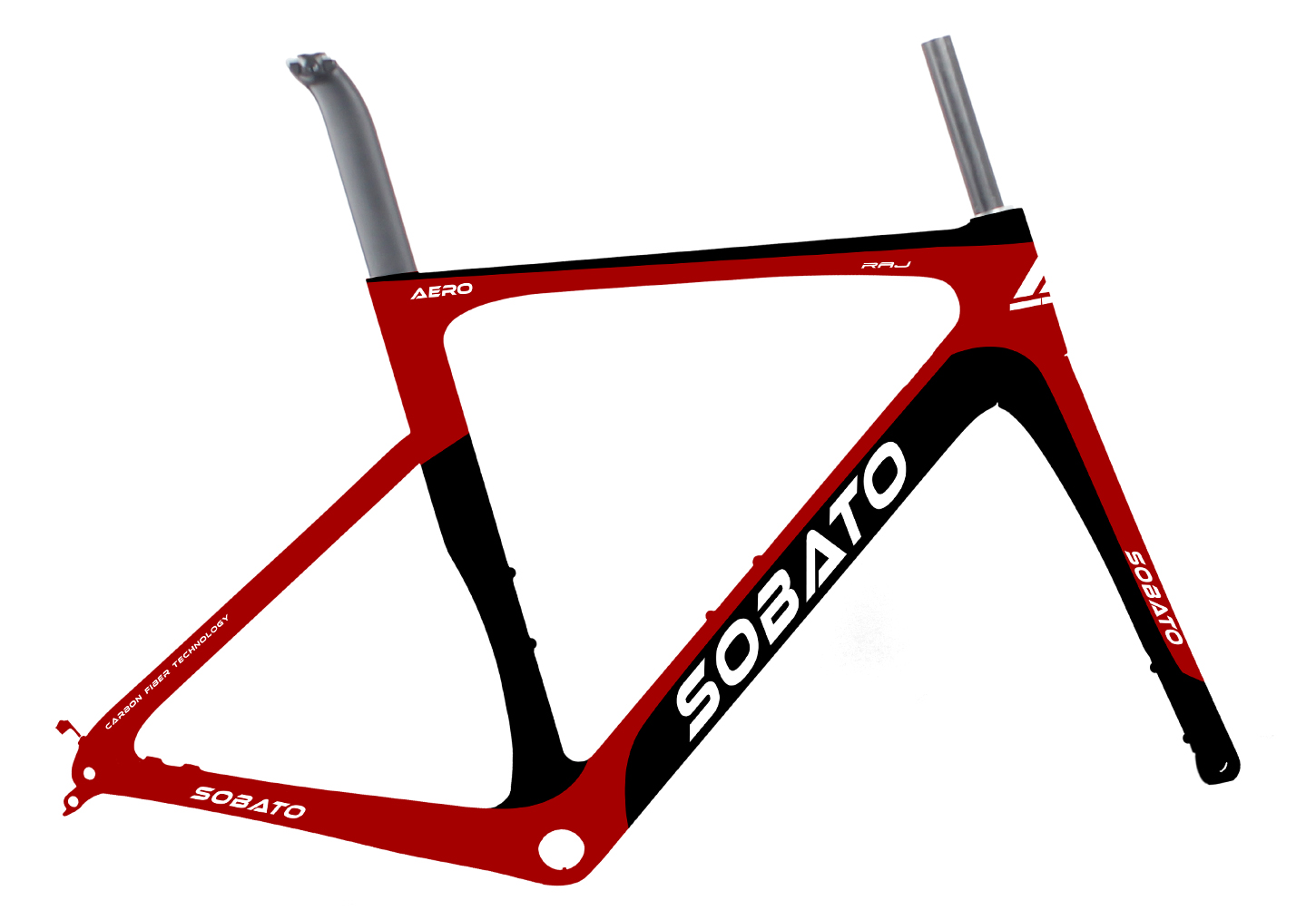

RAJ represents the latest step in aero bikes, a truly innovative aero race bike with full internal cable routing and disc brake control.  With clearance for tyres up to 32mm and power meter-ready, it's the speed machine you've been looking for to maximise your chances of success. This frame is full UCI approval.

1.Head tube upper and lower both are 1-1/2, with tapered front fork standpipe for precise handling, it

RAJ

2.Fork: the design of the fork is to reduce wind resistance to achieve the effect of aero.

RAJ

3.Seat tube: Aero seat tube design, concealed seat clamp, reducing wind resistance and being clean and beautiful

RAJ

4.BB86: Carbon BB86 is more lighter, this gives a wider bottom bracket shell and allows to build a more broadly-spaced chainstays as well as enhance the frame stiffness

RAJ

5.12 x 142 mm axle standard is to make thru-axles as quick and easy to use as a quick release system

RAJ

6.The fully UCI-compliant design integrates frame, fork, stem, handlebar and seat post into a structure that

RAJ
  • RAJ

  • RAJ

  • RAJ

  • RAJ

  • RAJ

  • RAJ

SPECIFICHE TECNICHE



Size464952545658
ASeat Tube Length440470500520540560
BTop Tube Length503510530540562577
CHead Tube Length100105115135155180
DHead Tube Angle71°71.5°72.5°73°73.5°73.5°
ESeat Tube Angle75°75°74°74°73.5°73.5°
FBottom Bracket Drop727272727272
GChainstay Length405405405405405405
HFront Center570573575581593607
IOffset454545454545
JWheel Base9649679699759871002
KStack511518530552572596
LReach365372378382393401
MFork Length380380380380380380
